Green Solutions for Cement Industry: a 40MWh ESS Project Connected to the Grid

Recently, a battery energy storage system project participated by REPT BATTERO was successfully connected to the grid in Meizhou City, Guangdong Province. It is reported that this project is a user-side plant energy storage project with a scale of 40MWh. By deploying a stable clean energy supply system in the local area, REPT BATTERO has injected new momentum into the local energy green transformation.

In early August, the 20MW/40MWh project of DC side was successfully connected to the grid.

The project is located in Meizhou, one of the three major cement production bases, and is a user-side plant energy storage project. REPT BATTERO added an energy storage system in the user substation of the plant, which is connected to the grid through two 10kV feeder switches in the substation, and adopts the parallel connection of multiple energy storage units with an output voltage level of 10kV.

Focus on Client’s Requests

According to McKinsey’s data, the cement industry accounts for 7% of global carbon emissions and China’s cement industry carbon emissions accounted for about 9% of the country’s total carbon emissions.

The completion and commissioning of the project will effectively:

· Alleviate the company’s peak power supply pressure;

· Increase the consumption of new energy;

· Reduce the cost of enterprise energy.

High-Quality and One-Stop Services

According to the introduction, the total capacity of energy storage of this project is 20MW/40MWh, including 6 energy storage units, each energy storage unit consists of 2 sets of 3.35MWh battery stacks connected with 1 set of 3.45MW boost inverter unit.

The battery system of this project adopts lithium iron phosphate battery system, which is modularized in the form of prefabricated cabin.

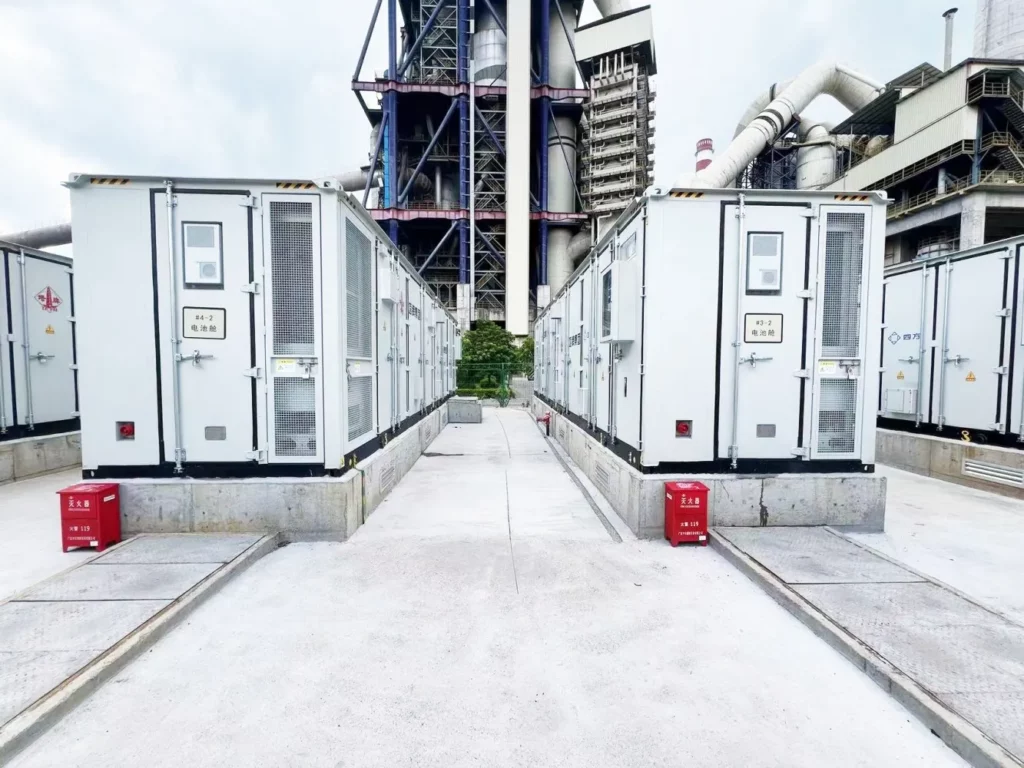

The 40MWh energy storage system is equipped with 12 3.35MWh containers. Each outdoor prefabricated module contains batteries, battery management system, liquid cooling unit, fire protection and monitoring system.

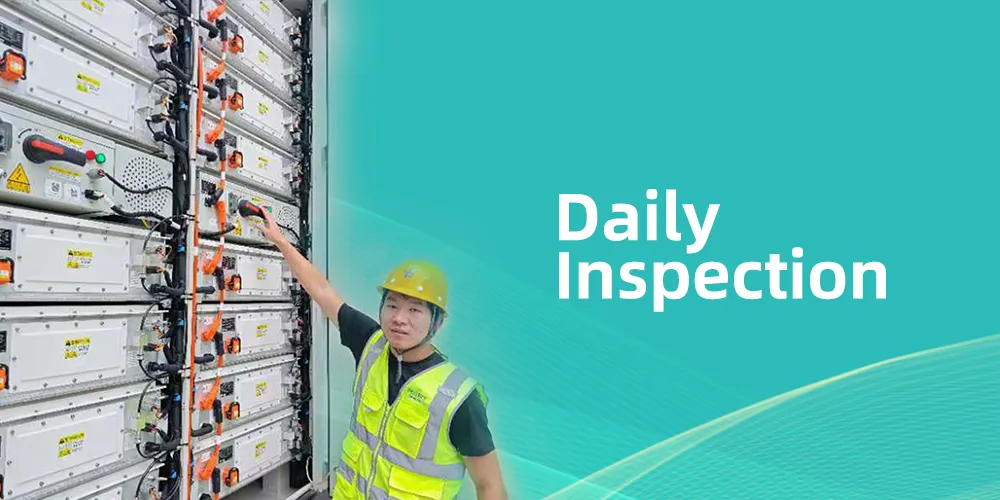

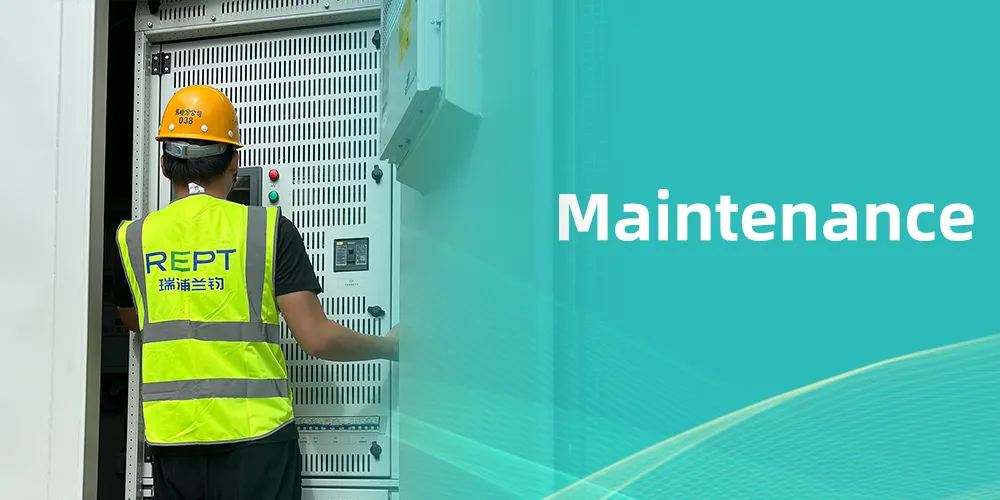

We have provided our clients with professional technical service content and service personnel in the on-site services. Personnel dispatched to engage in this program are always experienced engineers. We provide clients with services such as on-site guidance for equipment installation, commissioning and guidance before putting into operation and technical assistance at the initial stage of equipment energization and operation.

REPT BATTERO hopes to provide more enterprises with energy transformation solutions, and provide stable and safe energy supply for global users. In the future, we will continue to make efforts to fuel a green future!
